Hand Drafting vs. CAD: What the Industry Gained — and What It Lost

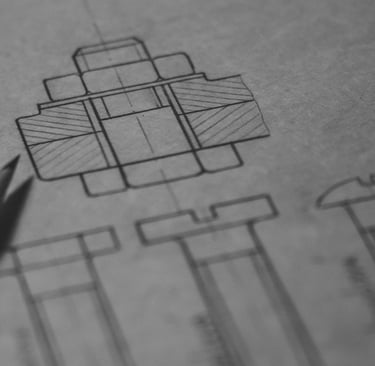

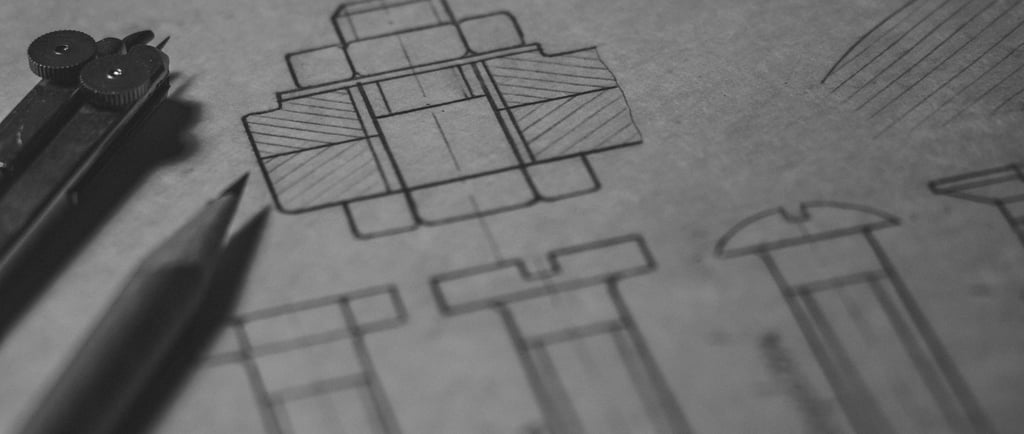

✏️What Hand Drafting Taught Us

Before CAD, every line was deliberate. Designers had to visualize the entire geometry mentally before putting pencil to sheet. It built:

• Spatial awareness

• Clarity of thought

• Manual precision

• And most importantly — respect for process

Engineers who learned on the board didn’t waste strokes. They knew why every view mattered.

💻 What CAD Revolutionized

Then CAD arrived — and it brought a storm:

• Speed: Complex drawings in hours, not days

• Revisions: Iterations became non-destructive

• Accuracy: Millimeter-perfect geometry with no smudges

• 3D Modeling: From orthographic to isometric in one click

• Simulation & Validation: Stress tests and motion studies pre-manufacture

CAD didn’t just make drawing easier — it made thinking deeper. You could test, optimize, and simulate without lifting a tool.
